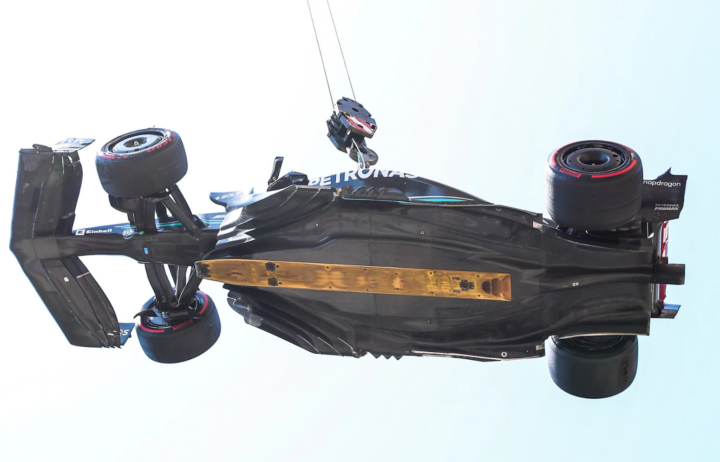

Formula 1 represents a highly constrained optimization problem where the primary objective is minimizing lap time around complex trajectories. For aerodynamicists, the challenge is not just minimizing the aerodynamic drag for terminal velocity, but rather maximizing the aerodynamic efficiency, often expressed as the ratio of downforce generated to drag produced. Engineers must map out the car's aero map to ensure a stable aerodynamic platform across varying ride heights, yaw angles, and roll and pitch gradients. The overarching goal is to manipulate the flow field to maximize the negative lift coefficient, generating aerodynamic downforce that increases the normal load on the tires without adding inertial mass. As a vehicle's velocity exceeds 300 km/h, the dynamic pressure acting on the body of the chassis becomes immense; this pressure force is directly proportional to the density of the air and grows with the square of the car's speed. A standard automotive geometry inherently generates a positive lift vector due to the attached flow over its convex upper surfaces and the pressure recovery in its wake. This natural lift reduces the normal vertical load on the tire contact patch. The lateral grip a tire can produce is directly proportional to the vertical load pressing it into the ground; therefore, a reduction in normal load directly diminishes the tires' ability to generate lateral cornering forces and longitudinal braking forces. Furthermore, aerodynamic lift shifts the center of pressure relative to the center of gravity, inducing severe pitch and yaw instabilities that dynamically unload the axles and critically degrade the vehicle's transient handling response. The theoretical solution to this instability is to decouple the vehicle's normal load from its physical mass. By utilizing foundational aerodynamic relationships, where the total lifting or down-pushing force depends on the air's density, the square of the freestream velocity, the size of the aerodynamic surfaces, and the aerodynamic efficiency of the shape, engineers manipulate the bodywork to achieve highly negative lift. This generates a downward force vector that artificially increases the vertical load on the tires. Because this force scales exponentially with speed, it provides massive grip in high-speed corners without increasing the vehicle's physical mass. Keeping mass low is critical, as Newton's second law dictates that acceleration is inversely proportional to mass; any additional inertia would degrade the car's longitudinal acceleration and penalize its dynamic weight transfer during cornering.

Autorotation is a critical flight regime necessitated by the fundamental aerodynamic reliance of rotary-wing aircraft on engine-driven rotor velocity. Unlike fixed-wing aircraft, which rely on forward airspeed over static airfoils to maintain lift, helicopters depend entirely on the continuous rotational speed (Nr​) of the main rotor system. In the event of a total powerplant failure, the primary source of thrust and lift is immediately compromised. Autorotation provides a controlled descent mechanism by converting the aircraft's potential energy (altitude) and kinetic energy (forward airspeed) into the rotational kinetic energy required to sustain Nr​, ensuring continuous aerodynamic control and a survivable landing profile. The critical nature of this maneuver is amplified by the mechanical interconnectivity of the helicopter's drivetrain. If a powerplant seizes and remains coupled to the main transmission, the engine's internal friction and static mass will rapidly decelerate the rotor system. A catastrophic decay in Nr​ results in an unrecoverable loss of the aerodynamic lift vector and severe rotor stall. Furthermore, because the tail rotor is mechanically driven by the main transmission to counteract main rotor torque, a rapid loss of main rotor drive also compromises directional yaw control. Therefore, immediately decoupling the failed powerplant and transitioning to an autorotative state is paramount to maintaining structural stability and aircraft control. Physically, autorotation is achieved by manipulating the aerodynamic vectors acting on the rotor blades. During powered flight, air is drawn downward through the rotor disk (induced flow). In an autorotation, the relative wind reverses, flowing upward through the rotor disk as the aircraft descends. By lowering the collective pitch, the pilot reduces the blade's angle of attack (AoA) to mitigate drag and prevent aerodynamic stall. This upward relative wind alters the resultant aerodynamic force vector, dividing the rotor disk into three distinct aerodynamic regions: the driven region (near the tip, where drag exceeds thrust), the driving region (mid-span, where the total aerodynamic force vector is inclined forward of the axis of rotation, generating autorotative thrust), and the stall region (near the root). The forward acceleration produced in the driving region precisely balances the aerodynamic drag of the driven region, achieving a steady-state autorotative Nr​.

In the early 20th century, the race to achieve the first powered, controlled, and sustained heavier-than-air flight was defined by extreme engineering constraints, primarily the relationship between weight and thrust. When Orville and Wilbur Wright were designing the 1903 Wright Flyer, they were acutely aware that their bespoke, 12-horsepower cast-aluminum engine provided barely enough thrust to keep the 600-pound aircraft aloft. Their overarching goal was not necessarily to build a practical, everyday vehicle, but simply to prove that sustained powered flight was aerodynamically possible. Consequently, every single component of the aircraft was scrutinized for weight reduction and aerodynamic efficiency, meaning luxuries like complex suspension or heavy rolling chassis systems were entirely out of the question. Despite their intense focus on the aerodynamics of flight, the physical reality of getting into the sky and returning safely to the earth presented a massive hurdle. To take off, an aircraft must reach its minimum rotational speed, but rolling wheels across the soft, uneven sand of Kitty Hawk, North Carolina, would generate immense ground friction. The brothers' low-powered engine simply could not overcome this rolling resistance to achieve takeoff speed. Furthermore, the aircraft needed a way to touch back down without shattering its fragile spruce and ash framework. The challenge was dual-natured: find a way to accelerate smoothly on the ground with almost no rolling resistance, and design a lightweight structure that could absorb the moderate shock of a controlled landing. To solve this, the Wright brothers completely abandoned the concept of integrated wheels, reasoning that carrying heavy wheels into the air just to use them for a few seconds on the ground was a gross waste of their limited thrust. Drawing from their earlier glider experiments, they knew that simple wooden skids were sufficient for sliding to a halt in the sand upon landing. For the takeoff problem, they engineered an external, decoupled solution: a 60-foot wooden launching track. By separating the takeoff running gear from the aircraft itself, they effectively reduced the aircraft's airborne weight while bypassing the high friction of the sandy beach, allowing the engine's thrust to be dedicated entirely to acceleration and lift.
