Forgot to share this video here, update on the charger build and some great welding advice sprinkled in!

.125” tick 3.5” diameter aluminum tube welded to billet driveshaft yoke 250 amps with foot pedal 30% EP AC balance 120 HZ 3/32 5356 aluminum filler rod 3/32 Lanthanated tungsten #7 cup at 20 cfh Scotch brited and acetone wiped before welding along with filler rod Could have used bigger bevels to make it look nicer.

3/16 mild steel 200 amps using the pedal 3/32 er70s2 wire #16 cup at 35 cfh 3/32 2% Lanthanated tungsten

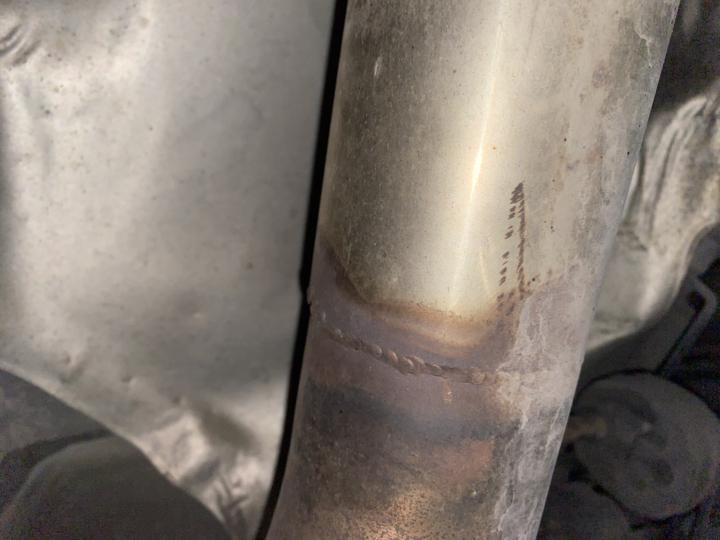

Just got back under my GTI the other day and decided to check on my resonator delete welds, happy to see that it’s all still holding up!😂 I used a size 8 cup, before I knew I should use a much bigger cup for stainless pipe, and I used 309L filler because I wasn’t sure what grade of stainless the original exhaust pipe was. My heat management was NOT good but I for sure learned from it

The Viper V10 is officially part of the car now! 3/16 mile steel motor mounts designed in Fusion 360 to fit the factory Viper motor mounts, cut out on the CNC Plasma table and welded to the Charger chassis!
