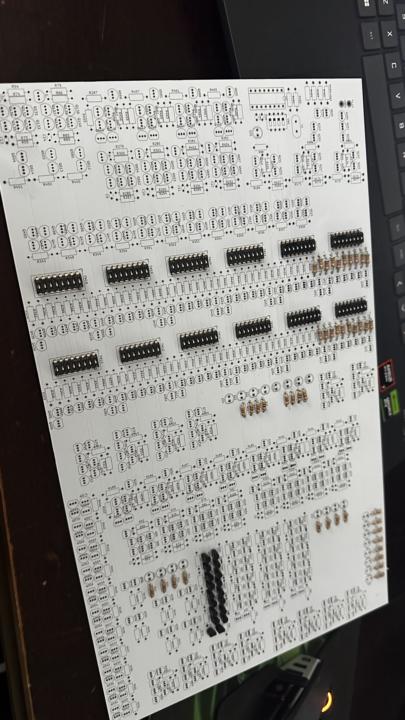

How did you design the layout? Could you maybe give us a little insight into how this PCB was created? (By the way: White PCBs are just beautiful 👌🏻)

Hi, I'm Albert, and I'm studying electrical engineering and information technology in Germany. I have a mild obsession with computers and servers. Right now, I own three servers, my desktop PC, and my laptop. I’m also deeply interested in the components of a computer, right down to the transistor. To satisfy my thirst for knowledge and my desire to create, I’ve acquired some measuring instruments and tools so I can build things myself from time to time. For example, I bought the analog oscilloscope shown in one of the pictures when it was broken and repaired it myself. I’m mainly here to exchange ideas with others and build a knowledge base.

@Dominic LeBoeuf I've had it for about three months now, and I had it repaired a month ago; since then, I've used it three times. Unfortunately, the 100 MHz sampling rate is a bit too slow for most of the things I have lying around, but I'm planning a project for which it might come in handy.
